1.2kg 2.4kg 3.6kg 4.8kg Multisection Transformer Dehydrating Breather

Name: 12kg 24kg 36kg 48kg Multisection Transformer Dehydrating Breather
Brand: Hebei Maier
Price: 1 USD

Brand Name : Hebei Maier

Model Number : Type L

Certification : CE

Place of Origin : Hebei, China

MOQ : 1 piece

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-10 work days

Packaging Details : Standard package

Name : 1.2kg 2.4kg 3.6kg 4.8kg Multisection Transformer Dehydrating Breather

Transparent Material : Glass

Gel Quantity : 1.2kg 2.4kg 3.6kg 4.8kg ...

Type : 42562 L

Connection Type : International standard

MOQ : 1 piece

Silica gel color : Orange

Port : Tianjin or Shanghai port

Contact Now

1.2kg 2.4kg 3.6kg 4.8kg Multisection Transformer Dehydrating Breather

Product Description

Transformer Dehydrating Breather Type L

The dehydrating breather type L is used to dry the intake air of transformers.
If the operating temperature of the transformer drops, air will be sucked in through the oil container, cleaned of dirt particles and subsequently dried by the silica gel inside the assembly groups B1 and B2 (optional).
The oil trap prevents any permanent contact between the silica gel and the moist ambient air and also filters the inflowing air. If the temperature rises, air is expelled from the conservator and flows through the transformer dehydrating breather type L in the opposite direction. The size of the dehydrating breather which has to be used depends on the oil volume and the frequency of the air exchange.

Transformer dehydrating breather type L consists of at least one upper part (B1) and the oil trap (OV). Depending on the requirements, further intermediate parts (B2) can be added which are filled with 1.2 kg of silica gel each.Upon requestthe connection parts are available in A4 stainless steel.

Transformer deyhdrating breather type L sizes

42562 L1 (1.2 kg Silica gel)
42562 L2 (2.4 kg Silica gel)
42562 L3 (3.6 kg Silica gel)
42562 L4 (4.8 kg Silica gel)
42562 L5 (6 kg Silica gel)

FAQ

Q1: What is your MOQ?

A: Our MOQ is 1 piece.

Q2: Do you offer sample?

A: Yes, we can provide you a sample.

Q3: What is your payment term?

A: 100% TT in advance.

Q4: What is your lead time?

A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!

Q5: Are you a manufacturer or a trader?

A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.

Q6: Can you make the packing and logo as customer request?

A: Yes we can.

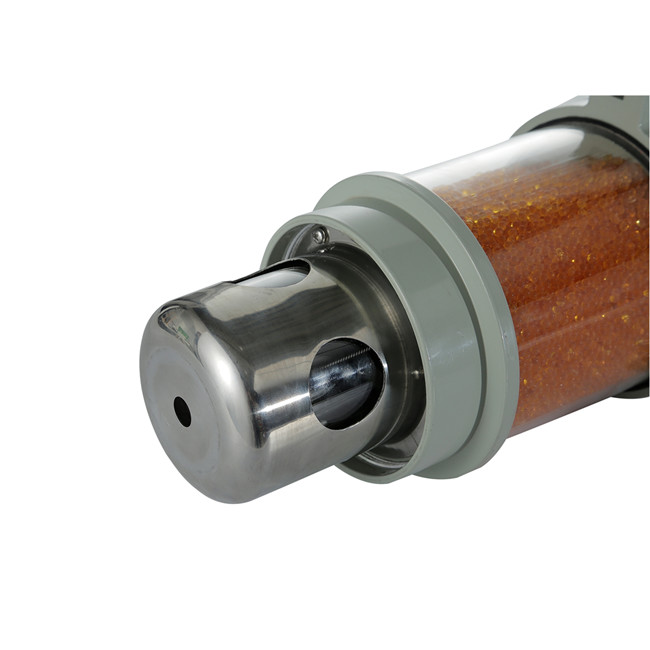

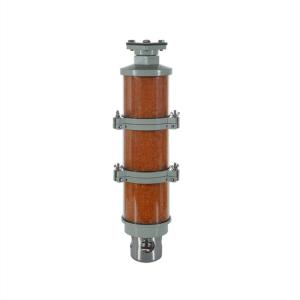

Product picture

1.2kg 2.4kg 3.6kg 4.8kg Multisection Transformer Dehydrating Breather
